Cessna 414 Garmin G600 |
€ 311.000 |
Description
| Description | | Type: | Monomoteur | | Marque: | Cessna | | Modèle: | 414 Garmin G600 | | Millésime: | 1973 | | Immatriculation: | HB-LSX | | Emplacement: | Suisse | | Prix: | € 311.000 | | Détails |
| Seller |
Aeromeccanica S.A
Aeroporto Cantonale di Locarno
6596 Gordola
Suisse
Tel.: +41-91-2103128
Fax: +41-91-7450037 |
| Contact avec vendeur |
|
|
|
Détails
| Description | | Type: | Monomoteur | | Marque: | Cessna | | Modèle: | 414 Garmin G600 | | Millésime: | 1973 | | Immatriculation: | HB-LSX | | Emplacement: | Suisse | | Prix: | € 311.000 |

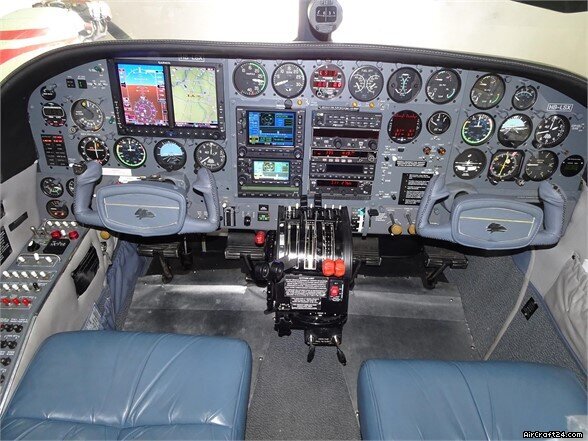

| Avionique | | Avionics and autopilot upgrade per EASA Mod. 0060029550-001 PS Engineering PMA8000C Audio Panel, Intercom, Marker Beacon Garmin GNS530W NAV-COM-GPS, interfaced with Radar System Garmin GNS430W NAV-COM-GPS Garmin G-600, EASA STC.A.S.037679 (Garmin GDU620) with TAWS and Synthetic Vision, Radar Display King KI206 Number Two NAV Indicator King KX165A NAV-COM 3, 8.33 kHz S-TEC 55X Autopilot with Computerl, Transducer, Roll/Pitch/Trim Servos, Turn and Bank, Yaw Damper, FAA STC SA8890SW-D, LBA Validated Shadin Digidata-L with Fuel Flow Option grandfathered FAA STC SA00729SE-D King KN63 DME, displayed on Garmin G600 King KR87 ADF displayed on Garmin G600 Garmin GTX330 XPDR S Number 1 Garmin GDC74A Encoder King KT73 XPDR S Number 2 ACK A30.4 Encoder Garmin GWX68 Weather Radar displayed on Garmin G600 King KRA10A Radar Altimeter Altitude Alerter integrated in the Garmin G600 L-3 Sky 497 TAS System displayed on Garmin G600 and GArmin GNS530W, connected to ACK A-30.4 Encoder Artex ELT ME406, PN 453-6603, 406 Mhz Intercom for all Occupants EDM760 Engine Analyzer Astro Tec Digital Clock/Timer Complete Co-Pilot Instrument Panel ASR EPU6A5 Emergency Power Supply Attitude Gyro, Attitude Indiator, Vertical Speed Indicator, both Airspeed Indicators, Fuel Quantity Indicator, Manifold Pressure Indicator repaired by Avionitec on 20.09.2013 Main Battery replaced on 20.09.2013 Both Attitude Indicators and Tachometers repaired by Avionitec on 30.03.2015 Radar Antenna GWX68 replaced on 02.11.2016 HSI replaced on 14.12.2018 |
| Extérieur | | Exterior Notes: White with blue and silver stripes. Condition: 8/10 |

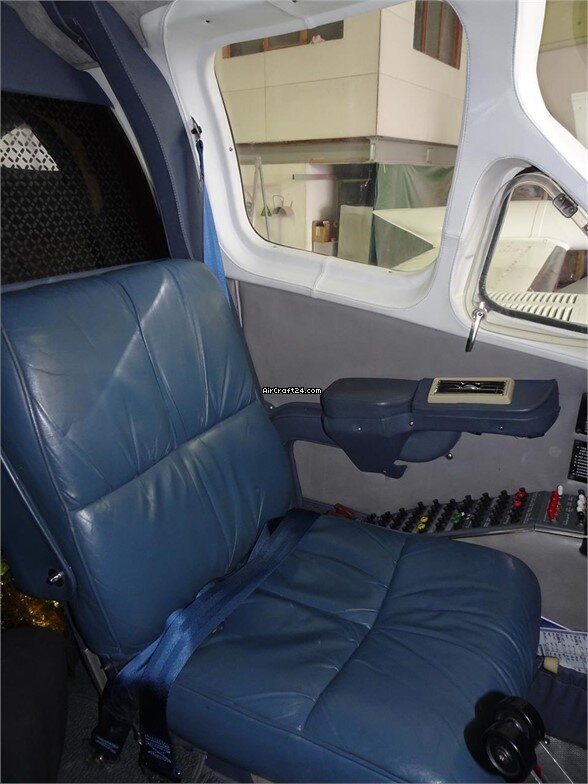

| Intérieur | | 7 Seats Light Blue Leather with Grey Carpet Courtesy Table Refreshments Cabinet Condition: 8/10 |
| Remarque / Autres | 20.09.2013 at TT: 3912:10 Both Windshields Replaced Main Landing Gear Torque Tubes Replaced Avionics Upgrades 22.02.2018 at TT: 4131:42: Combustion Heater replaced with new Hartzell Heater 27.07.2018 at TT: 4171:41: Engine Beams inspection Engine Flex Hoses inspection Heater Inspection Fuel Selector Valve inspection Corrosion Program Inspections performed A-SID Zone 2 Inspection performed per Gomolzig STC EASA A.S.03328 14.12.2018 at TT: 4183:48: Seat Belts overhaul by ASF Germany Oxygen Bottle overhaul Propeller overhaul by MT-Propeller 14.12.2018 Propeller Governors overhauled by MT-Propeller Empty Weight: 4986.2 Lbs Max Ramp Weight: 6800 Lbs MTOW: 6765 Lbs Max Landing Weight: 6430 Lbs Current FOCA MTOW: 2880 kg Nose Baggage Capacity 284 Lbs Rear Baggage Compartment Capacity: 100 Lbs 338 USG Fuel Capacity Swiss Noise Class D Noise Level: 82.8 dB(A) Last 200 hrs annual inspection completed 14/04/2020 at 4294:40 Engines run every two weeks ARC Airworthiness Review Inspection due Aircraft will be sold with current Annual Inspection and ARC (Airworthiness Review Certificate) Specifications subject to verification by purchaser and aircraft subject to withdrawal from the sales at any time without notice
Fantastic Cessna 414 RAM 7 Two 335 HP RAM Engines! Pressurized 7 Seats 4 Bladed Propellers Avionics upgrades Extended range fuel tanks Max Takeoff Weight: 6765 Lbs Empty Weight: 4986.2 Lbs Fuel Capacity: 238 US Gallons
Airframe Serial Number: 414-0360 Total Time: 4385 hours Engine Manufacturer: CONTINENTAL Model: TSIO-520-NB, 335 HP, Modified with RAM FAA STC SA4327SW-D Left Hand Serial Number: 813543-R Total Time: 2539:32 TSOH: 473 hrs Right Hand Serial Number: 521667 TSOH: 473 hrs TBO (in hours): 1600 Overhauled in 2013, Installed in September 2013 at Aircraft TT: 3912:10 Propellers Manufacturer: MT MTV-14-D-F/CF188-30g with CF188-30g Blades 4 Bladed, De-Iced, Swept Composite Blades with Propeller Synchro Phaser Manufactured in 2007 TT: 474:49 Time Since Overhaul: 201:12 Hours Propeller overhaul performed by MT-Propeller
Propeller Synchrophaser Oxygen System Surface De-Ice Alcohol Windshield Anti-Ice Optional Ice Shields on fuselage sides, currently damaged and removed from the aircraft Air Conditioning provisions, system not installed, two cabin blowers are operative! Releaf Tube Toilet Potty (Potty not available) RAM VII per FAA STC 09469SC-D, EASA STC 10038286 including STC SA3721SW, SE4651SW, SA7984SW-D and SA09469SC-D installed on 20.09.2013 at TT: 3912:10 LH and RH Aft Wing Locker Tank FAA STC SA2514CE installed 20.09.2013 Left Factory Nacelle Tank Dual Aft Body Strakes FAA STC SA01935LA, installed 30.03.2015 Currently damaged ASR EPU6A5 Emergency Power Supply Vortex Generators Rosen Sun Visor FAA STC SA51NM LED Taxi Light |
